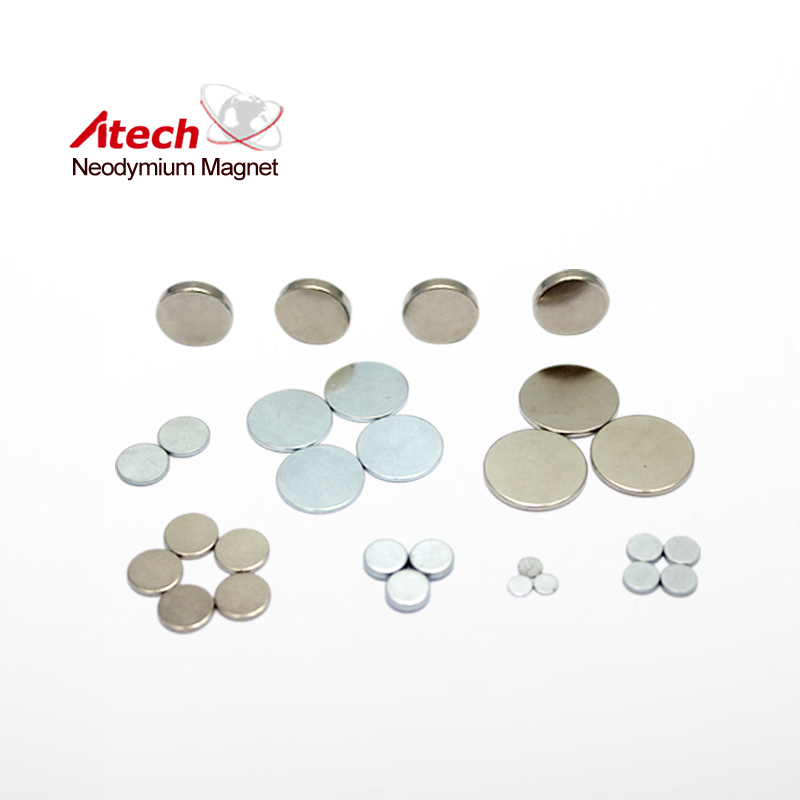

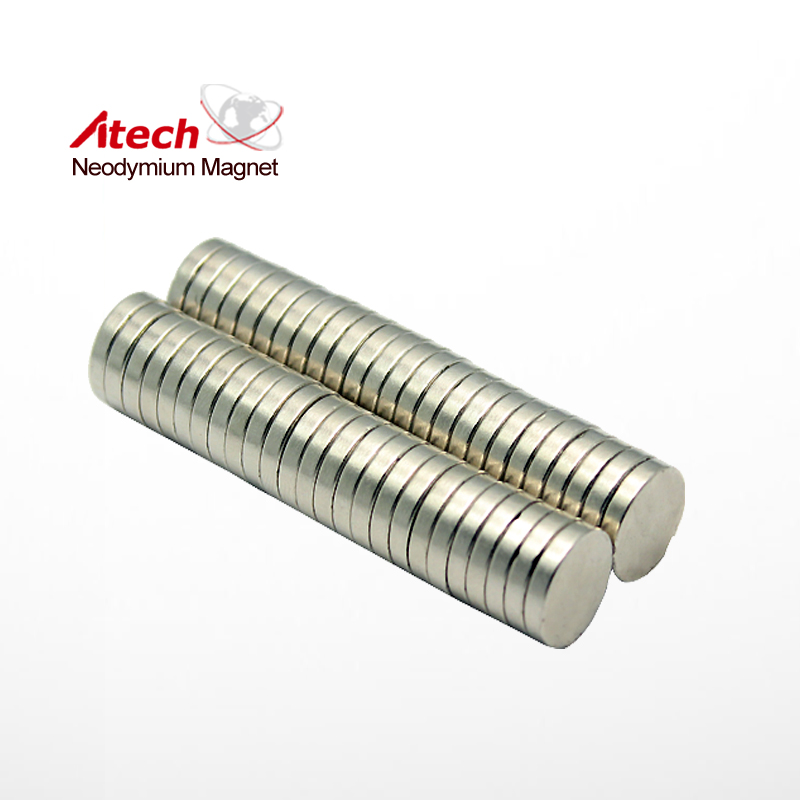

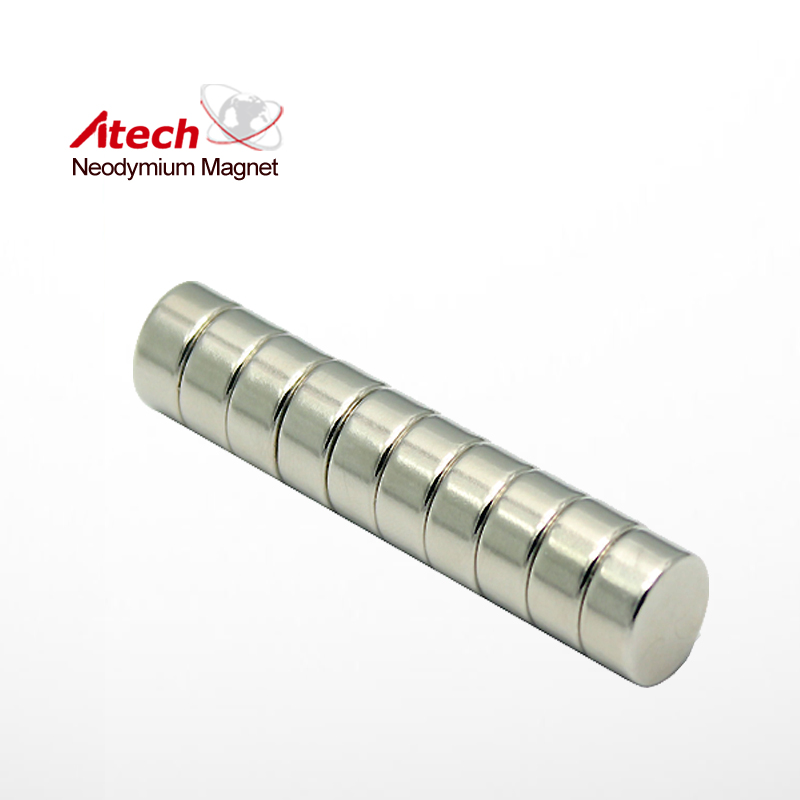

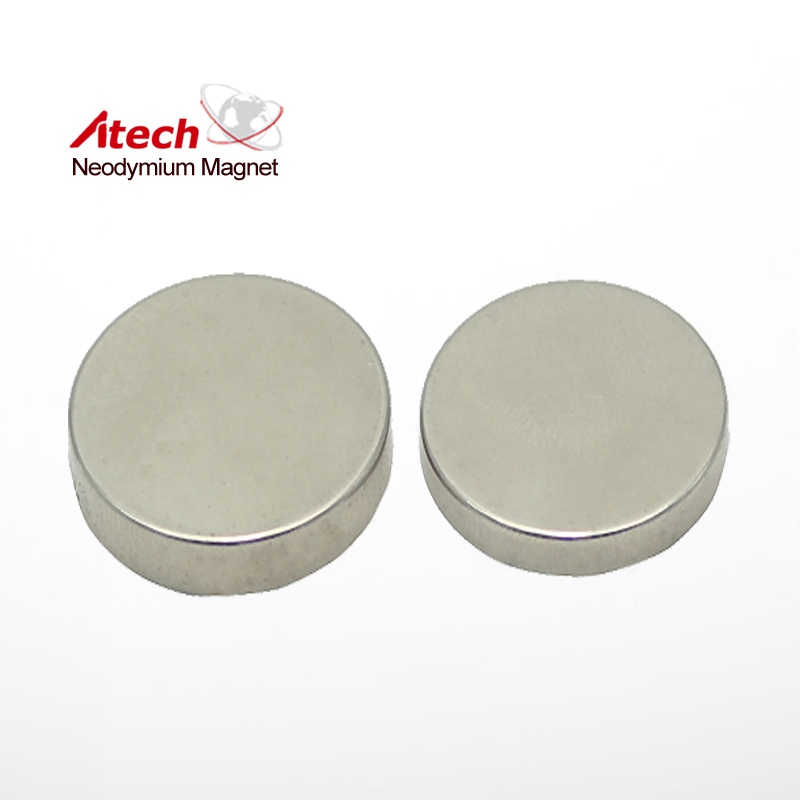

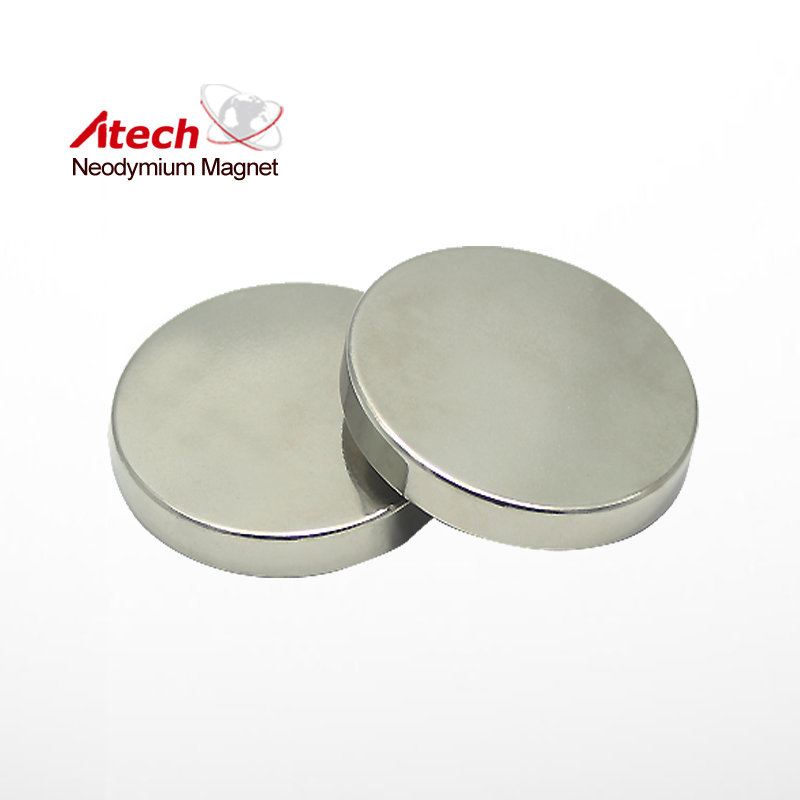

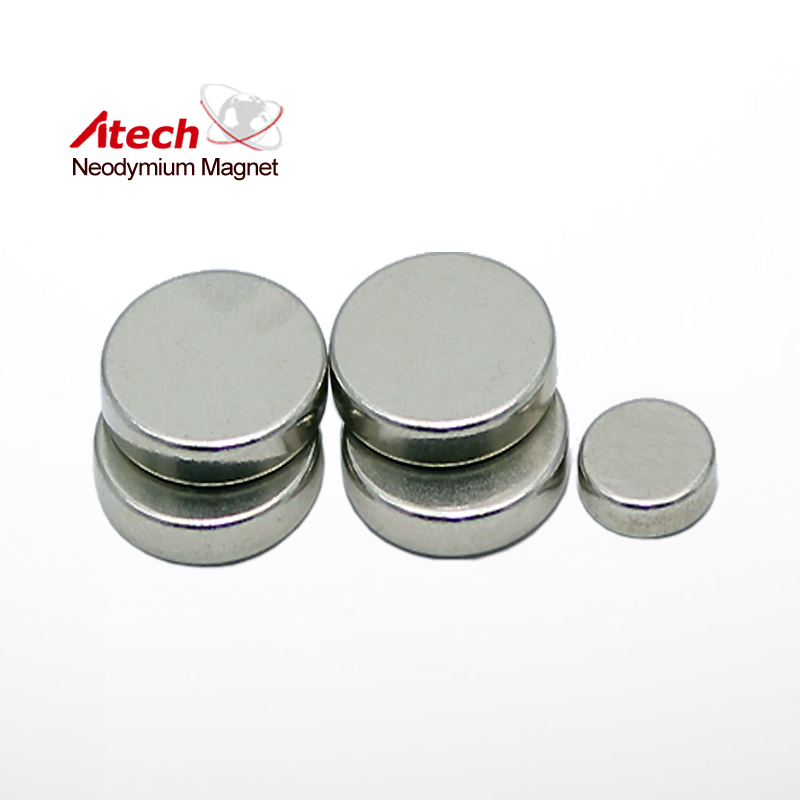

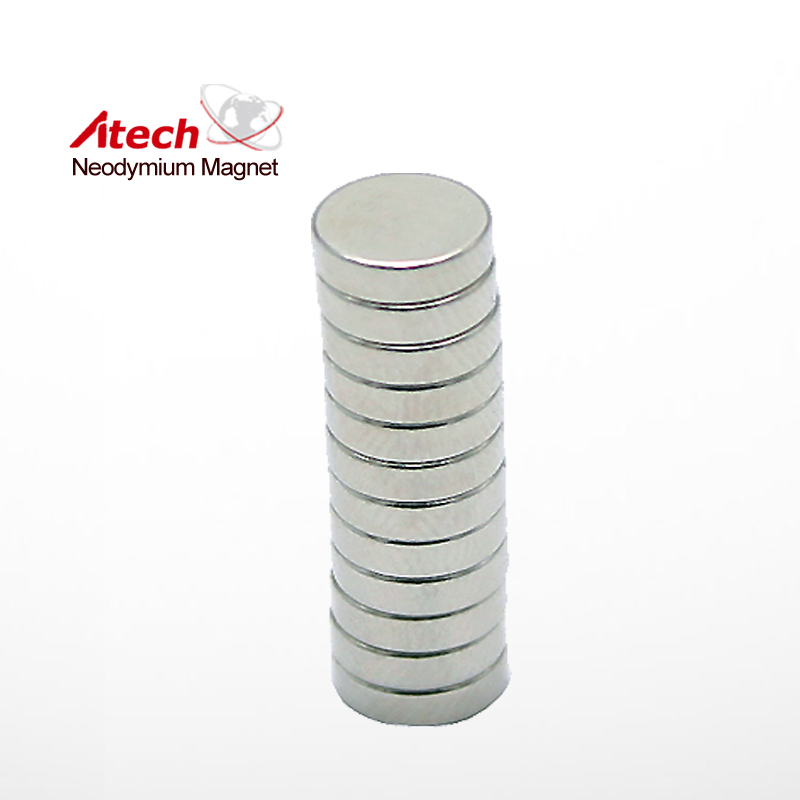

Nickel Coated N35 Neodymium Magnet Disc

Similar Products

Round Car Magnets N52 1/2 inch x1/10 inch Circle Magnet Disc SKU Code: ATECHDI009 Dimensions: D1/2""x1/10"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 14800 GSMax Op...
Nickel Coated N42M Neodymium Magnet Disc Nickel Coated N42M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
Nickel Coated N38 Neodymium Magnet Cylinder MaterialNdFeBGradeN38Remanence Br（kGs）Max:12.5Min:12.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.3Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:39Min:36Max Temp (℃)8...

Nickel Coated N35 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N35 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N35
Remanence Br（kGs）	Max:12.2 Min:11.7
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10.9
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:36 Min:33
Max Temp (℃)	80
